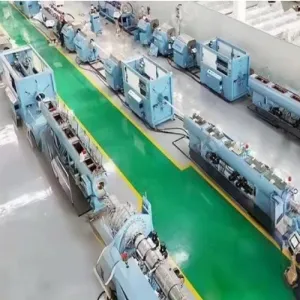

OPVC Pipe Production Line

    OPVC Pipe Production Line

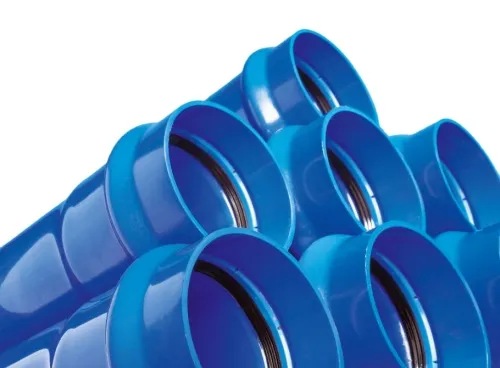

    The pipes produced by PVC-O pipe extrusion equipment are not only pressure resistant but also cold resistant. Its biggest advantage is that the pipes are lightweight. For pipes of the same pressure level, PVC-O accounts for about 40% of the weight of PVC-U and about 30% of the weight of HDPE100. Therefore, the cost of PVC-O pipes is more than 50% lower than that of PVC-U pipes and HDPE pipes
  • Share：
    • Contact us Inquiry
  • E-mail：zg@bljjx.cn
    WhatsApp：8618015695559

Equipment advantages:

The pipes produced by PVC-O pipe extrusion equipment are not only pressure resistant but also cold resistant. Its biggest advantage is that the pipes are lightweight. For pipes of the same pressure level, PVC-O accounts for about 40% of the weight of PVC-U and about 30% of the weight of HDPE100. Therefore, the cost of PVC-O pipes is more than 50% lower than that of PVC-U pipes and HDPE pipes

Technical Specifications:

ModelBLJ-78/33BLJ-93/37BLJ-93/37BLJ-114/37BLJ-114/37BLJ-135/37BLJ-135/37
Min ID90mm110mm160mm315mm450mm630mm800mm
Max ID250mm315mm400mm630mm800mm1000mm1200mm
Max capacity 300 KG/H450 KG/H500KG/H800KG/H900KG/H1200KG/H1450KG/H
Power45KW79 KW79 KW118KW118KW173 KW173 KW
Center height1000mm1100mm1100mm1200mm1250mm1350mm1450mm
Length51000mm52000mm52000mm53000mm53000mm54500mm55000mm
Width4000mm4200mm4300mm5000mm5300mm5800mm6500mm
Cooling water≧0.4㎥/min≧0.6㎥/min≧0.6㎥/min≧0.8㎥/min≧0.8㎥/min≧1㎥/min≧1㎥/min
Production processOne-stepOne-stepOne-stepOne-step/Two-stepTwo-stepTwo-stepTwo-step
