Equipment advantages：

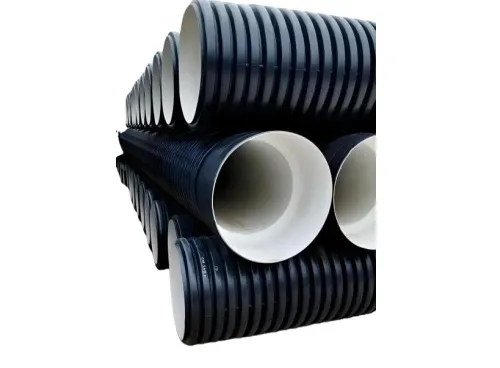

It is a device capable of producing large-diameter corrugated pipes, which is about 40% cheaper than water-cooled high-speed corrugated pipe production line. It is air-cooled and can produce corrugated water pipe, power communication protective pipes, etc.
Technical Specifications：
Model | LS-400H | LS-600H | GS-800H | GS-1000H | GS-1200H | GS-1500H |
Min ID | 90mm | 110mm | 200mm | 300mm | 400mm | 500mm |
Max ID | 400mm | 600mm | 800mm | 1000mm | 1200mm | 1500mm |
Max speed | 5 m/min | 4 m/min | 3 m/min | 2.5 m/min | 2 m/min | 1 m/min |
Max capacity | 550 KG/H | 650 KG/H | 800KG/H | 1000KG/H | 1200KG/H | 1700KG/H |
Power | 240KW | 260 KW | 360 KW | 500KW | 650KW | 1000 KW |
Center height | 1100mm | 1250mm | 1250mm | 1400mm | 1600mm | 1900mm |
Length | 25000mm | 30000mm | 32000mm | 35000mm | 37000mm | 40000mm |
Width | 2800mm | 2870mm | 3300mm | 3500mm | 4000mm | 5000mm |
Cooling water | ≧0.3㎥/min | ≧0.4㎥/min | ≧0.5㎥/min | ≧0.6㎥/min | ≧0.7㎥/min | ≧0.7㎥/min |
