Welcome To Zhangjiagang Beilijia Machinery Manufacturing Co., Ltd
Equipment Advantages：

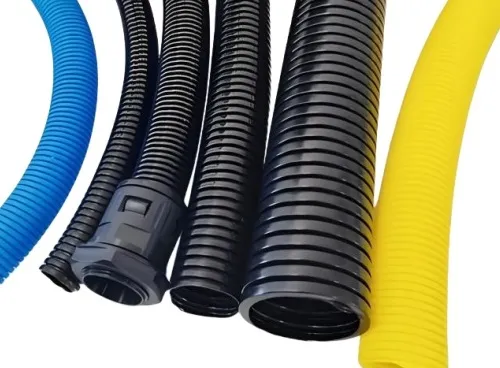

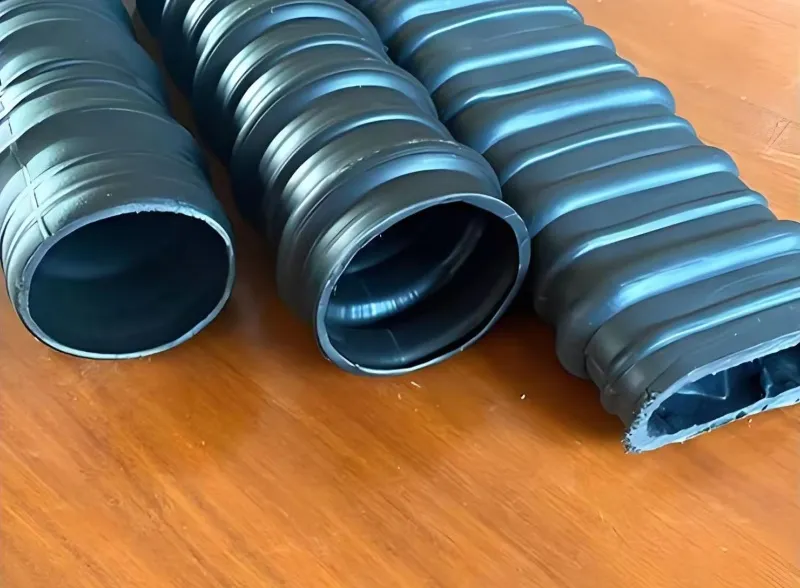

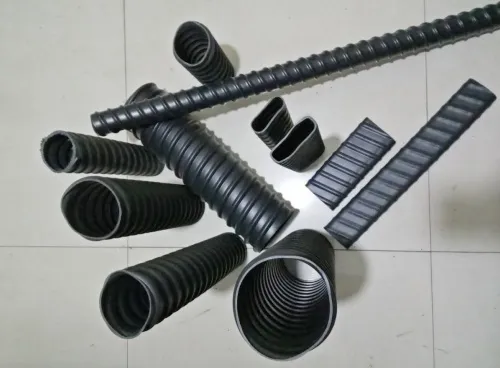

economic investment! fast production speed, can produce wire conduits, fresh air ducts(FAD), prestressed corrugated pipes, etc!
Technical Specifications：
Model | GST-13 | GST-55 | PT-13 | PT-63 | PT-S110 | PT-D110 | PT-D200 |
OD | 5-13mm | 15-54mm | 5-13mm | 15-63mm | 40-110mm | 63-110mm | 110-200mm |
Max speed | 30m/min | 40 m/min | 15 m/min | 15 m/min | 7 m/min | 7 m/min | 4 m/min |
Max capacity | 30KG/H | 45KG/H | 30 KG/H | 30 KG/H | 100 KG/H | 110 KG/H | 165 KG/H |
Power | 25KW | 90KW | 20 KW | 45 KW | 95 KW | 65 KW | 115KW |
Module quantity | 90 pairs | 72 pairs | 50 pairs | 54 pairs | 42 pairs | 60 pairs | 58 pairs |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1000mm | 1000mm | 1000mm |
Length | 15000mm | 15000mm | 15000mm | 15000mm | 15000mm | 15000mm | 15000mm |
Width | 1000mm | 1000mm | 1000mm | 1000mm | 2000mm | 1500mm | 1500mm |
Cooling water | ≧0.2㎥/min | ≧0.2㎥/min | ≧0.1㎥/min | ≧0.2㎥/min | ≧0.3㎥/min | ≧0.3㎥/min | ≧0.3㎥/min |
